example_rhs Class Reference

This class is a basic example of how to write an rhs class. More...

#include <example_rhs.h>

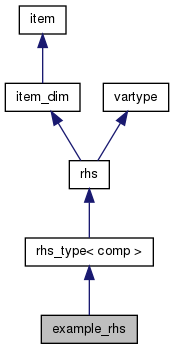

Inheritance diagram for example_rhs:

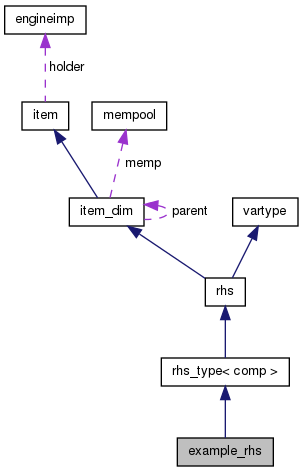

Collaboration diagram for example_rhs:

Public Member Functions
virtual std::string	type () const
	This function returns the variable type.
virtual std::vector< std::string >	dependencies () const
	This function returns a list of the dependencies needed to initialize the class.
virtual void	postprocess (input &indat)
	This function processes the input data for the class.
virtual void	update ()
	Update function for example_rhs.
virtual int	dxdt (ptr_passer x, ptr_passer dx, double t)
	This is the rhs function that calculates the derivative.
virtual	~example_rhs ()
	Destructor for example_rhs.
Public Member Functions inherited from rhs_type< comp >
virtual const std::type_info &	vtype () const
	returns the type of the current variable
virtual void	initial_condition (ptr_passer in, size_t len)
	Generic initial condition, call default constructor for each element/.
Public Member Functions inherited from rhs
	rhs ()
	Creates the base rhs class with a dimension=dimen.
void	initial_condition (ptr_passer x)
	Wrapper for intial_condition that assumes the length is equal to dimension.
virtual	~rhs ()
Public Member Functions inherited from item_dim
size_t	get_dimension () const
Public Member Functions inherited from item
	item ()
virtual	~item ()
virtual void	print () const
	Standard print function.
void	setname (const std::string n)
void	set_write_name (std::string wname)
const std::string &	name () const
const std::string &	write_name () const
Public Member Functions inherited from vartype
bool	compare (const vartype *in) const
bool	compare (const vartype &in) const
bool	compare (const std::type_info &tinf)
template<typename T >
bool	compare () const
template<typename T >
bool	compare (const T &in) const
std::string	vname () const
virtual const std::type_info &	vtype_internal () const
bool	compare_internal (const vartype *in) const
bool	compare_internal (const vartype &in) const
bool	compare_internal (const std::type_info &tinf)
template<typename T >
bool	compare_internal () const
template<typename T >
bool	compare_internal (const T &in) const
std::string	vname_internal () const
virtual	~vartype ()

Private Attributes
double	val1
double	val2
std::string	random_info
comp	something_useless
comp *	value_holder

Additional Inherited Members
Static Public Member Functions inherited from item
static std::shared_ptr< item >	create (std::string name, engineimp *rval)
Public Attributes inherited from item
engineimp *	holder
Protected Member Functions inherited from item_dim
void	print_upstream ()
virtual void	_do_mem_update (size_t dim_old)
void	add_as_parent (item_dim *p)
void	add_as_parent (std::shared_ptr< item_dim > p)
void	update_dim (size_t dim_new)
Protected Attributes inherited from item_dim
mempool	memp
std::set< item_dim * >	children
item_dim *	parent
size_t	dimension

Detailed Description

This class is a basic example of how to write an rhs class.

This class is an example of a function rhs class. It implements all of the functions needed, and can even be called from the input file. Make sure to read the source file, as it contains a large amount of documentations that is not present in the documentation Notice that it inherits from rhs_type<comp>, since it is a complex value rhs. An rhs that dealt with real variables would inherit from rhs_type<double>.

See Also

example_rhs.cpp, example_rhs.h, rhs, and item

Definition at line 38 of file example_rhs.h.

Constructor & Destructor Documentation

example_rhs::~example_rhs ( )

virtual

Destructor for example_rhs.

This is the destructor for example_rhs. Whenever the class is deleted by the engine, this frees resources. The destructor for the memory pool is called here, so don't worry about deallocations

Definition at line 163 of file example_rhs.cpp.

Member Function Documentation

std::vector< std::string > example_rhs::dependencies ( ) const

virtual

This function returns a list of the dependencies needed to initialize the class.

The engine ensures that these variables will themselves be initialized when they are used to initialize the class. An error occurs if the variables are not found in the input or there is a loop of dependencies, this is a depends on b, which depends on c, which in turn depends back on a.

Note

This class depends on val1, val2, and random_info

Returns

List of dependencies

Implements item_dim.

Definition at line 69 of file example_rhs.cpp.

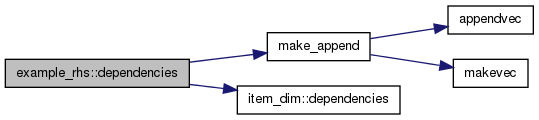

Here is the call graph for this function:

int example_rhs::dxdt ( ptr_passer  _x, ptr_passer  _dx, double  t  )

virtual

This is the rhs function that calculates the derivative.

This functions calculates a derivative given the current time and function value it takes in a pointer to x, which is the function value, and stores that data in dx.

Parameters

x	The current function value
dx	The array i which the derivative is stored
t	The current time

Implements rhs.

Definition at line 178 of file example_rhs.cpp.

Here is the call graph for this function:

void example_rhs::postprocess ( input &  dat )

virtual

This function processes the input data for the class.

This function process data that has been generated from an input file All of the names returned in the dependencies file exist and have been processed

Parameters

dat	The data structure containing the variable names

Reimplemented from item_dim.

Definition at line 85 of file example_rhs.cpp.

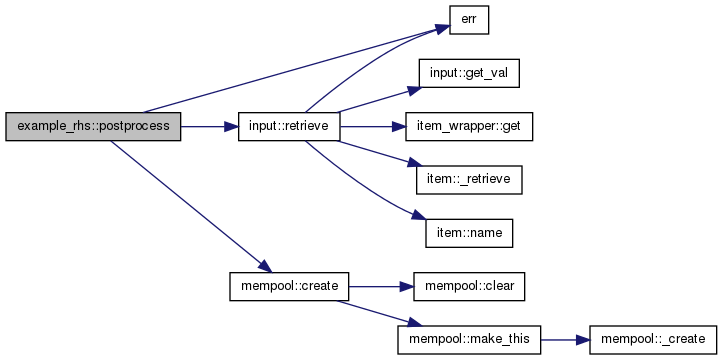

Here is the call graph for this function:

std::string example_rhs::type ( ) const

virtual

This function returns the variable type.

This function returns a string that has the typename of your variable. If the variable is meant to be instantiated in an input script, then this function must return the name which corresponds to this class. See rhs_CNLS for a case where that differs from the class name

Returns

Name of the class type

Implements item.

Definition at line 54 of file example_rhs.cpp.

void example_rhs::update ( )

virtual

Update function for example_rhs.

This function updates the values held by this class in case one of them is a variable that is being controlled. We don't re-allocate memory, since integers like dimension cannot be controlled. However, we must re-evaluate the array value_holder. The values val1, val2, etc are controlled themselves by the controller

Reimplemented from item.

Definition at line 151 of file example_rhs.cpp.

Member Data Documentation

std::string example_rhs::random_info

private

Definition at line 46 of file example_rhs.h.

comp example_rhs::something_useless

private

Definition at line 50 of file example_rhs.h.

double example_rhs::val1

private

Definition at line 43 of file example_rhs.h.

double example_rhs::val2

private

Definition at line 43 of file example_rhs.h.

comp* example_rhs::value_holder

private

Definition at line 56 of file example_rhs.h.

---

The documentation for this class was generated from the following files:

• rhs/example_rhs.h
• rhs/example_rhs.cpp
