The rhs base class. More...

#include <rhs.h>

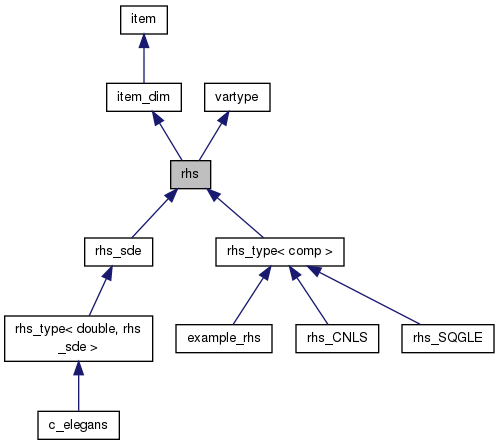

Inheritance diagram for rhs:

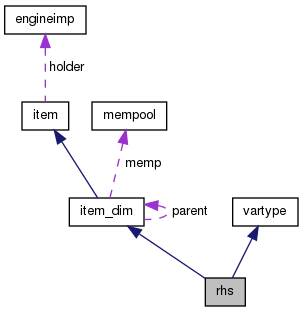

Collaboration diagram for rhs:

Public Member Functions
	rhs ()
	Creates the base rhs class with a dimension=dimen.
virtual void	initial_condition (ptr_passer x, size_t len)=0
void	initial_condition (ptr_passer x)
	Wrapper for intial_condition that assumes the length is equal to dimension.
virtual int	dxdt (ptr_passer x, ptr_passer dx, double t)=0
	Stores the derivative in dx given the time t and current x.
virtual	~rhs ()
Public Member Functions inherited from item_dim
size_t	get_dimension () const
virtual void	postprocess (input &dat)
virtual std::vector< std::string >	dependencies () const =0
Public Member Functions inherited from item
	item ()
virtual	~item ()
virtual void	print () const
	Standard print function.
virtual void	update ()
virtual std::string	type () const =0
void	setname (const std::string n)
void	set_write_name (std::string wname)
const std::string &	name () const
const std::string &	write_name () const
Public Member Functions inherited from vartype
virtual const std::type_info &	vtype () const =0
bool	compare (const vartype *in) const
bool	compare (const vartype &in) const
bool	compare (const std::type_info &tinf)
template<typename T >
bool	compare () const
template<typename T >
bool	compare (const T &in) const
std::string	vname () const
virtual const std::type_info &	vtype_internal () const
bool	compare_internal (const vartype *in) const
bool	compare_internal (const vartype &in) const
bool	compare_internal (const std::type_info &tinf)
template<typename T >
bool	compare_internal () const
template<typename T >
bool	compare_internal (const T &in) const
std::string	vname_internal () const
virtual	~vartype ()

Additional Inherited Members
Static Public Member Functions inherited from item
static std::shared_ptr< item >	create (std::string name, engineimp *rval)
Public Attributes inherited from item
engineimp *	holder
Protected Member Functions inherited from item_dim
void	print_upstream ()
virtual void	_do_mem_update (size_t dim_old)
void	add_as_parent (item_dim *p)
void	add_as_parent (std::shared_ptr< item_dim > p)
void	update_dim (size_t dim_new)
Protected Attributes inherited from item_dim
mempool	memp
std::set< item_dim * >	children
item_dim *	parent
size_t	dimension

Detailed Description

The rhs base class.

The RHS class provides the RHS of an equation du/dt = f(u) This is an abstract virtual class that provides a uniform interface to the integrator class. Aside from the standard item functions, derived classes must implement a function dxdt which loads an array with the derivative at a certain time given the time and function value

The array is a void pointer as to allow users to
