item_dim Class Reference

#include <item_dim.h>

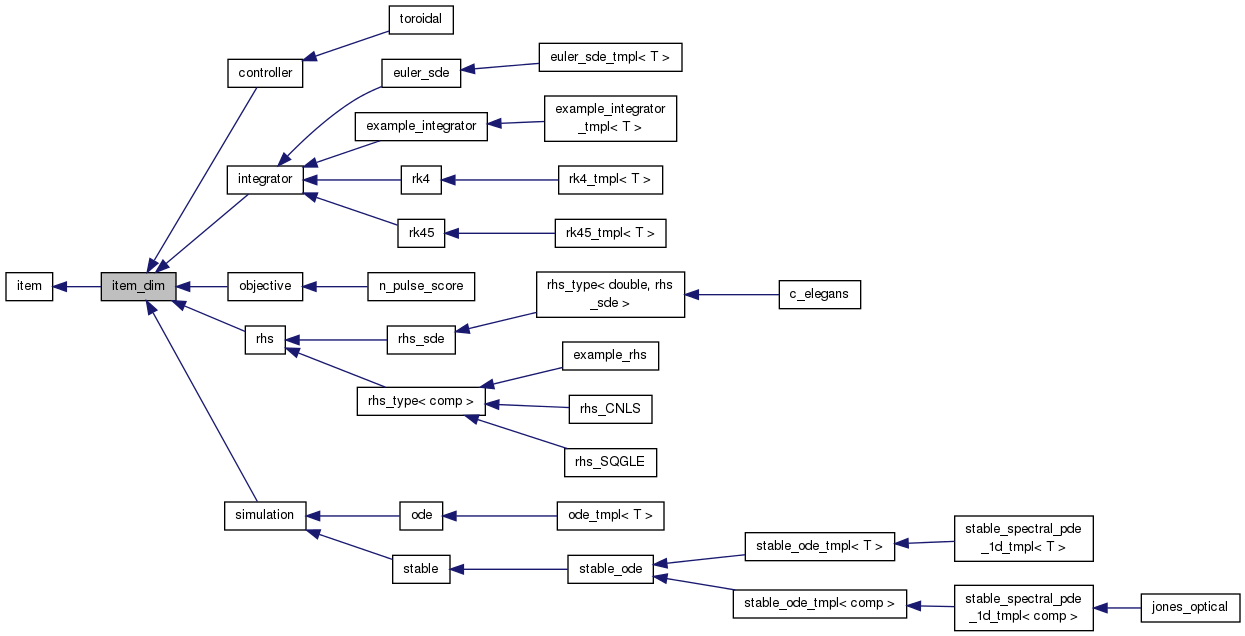

Inheritance diagram for item_dim:

Collaboration diagram for item_dim:

Public Member Functions
size_t	get_dimension () const
virtual void	postprocess (input &dat)
virtual std::vector< std::string >	dependencies () const =0
Public Member Functions inherited from item
	item ()
virtual	~item ()
virtual void	print () const
	Standard print function.
virtual void	update ()
virtual std::string	type () const =0
void	setname (const std::string n)
void	set_write_name (std::string wname)
const std::string &	name () const
const std::string &	write_name () const

Protected Member Functions
void	print_upstream ()
virtual void	_do_mem_update (size_t dim_old)
void	add_as_parent (item_dim *p)
void	add_as_parent (std::shared_ptr< item_dim > p)
void	update_dim (size_t dim_new)
Protected Member Functions inherited from item
virtual void	_retrieve (retrieve_wrapper &&inval, item *caller)

Protected Attributes
mempool	memp
std::set< item_dim * >	children
item_dim *	parent
size_t	dimension
Protected Attributes inherited from item
std::string	_name
std::string	_write_name
char	has_write_name

Private Member Functions
void	update_dim (size_t dim_new, size_t dummy)

Additional Inherited Members
Static Public Member Functions inherited from item
static std::shared_ptr< item >	create (std::string name, engineimp *rval)
Public Attributes inherited from item
engineimp *	holder

Detailed Description

Definition at line 23 of file item_dim.h.

Member Function Documentation

void item_dim::_do_mem_update ( size_t  dim_old )

protectedvirtual

Definition at line 19 of file item_dim.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void item_dim::add_as_parent ( item_dim *  p )

protected

Definition at line 50 of file item_dim.cpp.

Here is the call graph for this function:

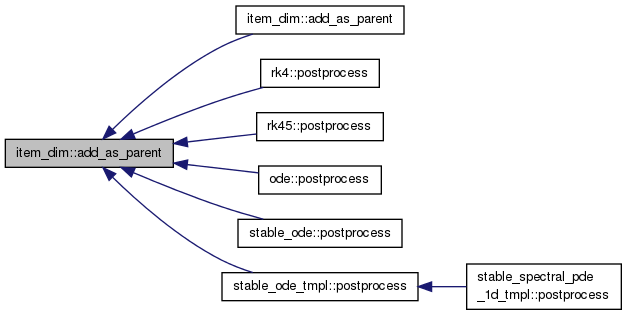

Here is the caller graph for this function:

void item_dim::add_as_parent ( std::shared_ptr< item_dim >  p )

protected

Definition at line 68 of file item_dim.cpp.

Here is the call graph for this function:

std::vector< std::string > item_dim::dependencies ( ) const

pure virtual

Returns the dependencies of item_dim

Note

item_dim strongly depends on the input value integer dimension

Returns

Vector containing the dependencies of item_dim

Reimplemented from item.

Implemented in example_rhs, stable_ode, jones_optical, c_elegans, example_integrator, simulation, stable_spectral_pde_1d_tmpl< T >, stable_spectral_pde_1d_tmpl< comp >, integrator, rhs_CNLS, n_pulse_score, stable, controller, toroidal, rhs_SQGLE, ode, rk45, euler_sde, rk4, and objective.

Definition at line 43 of file item_dim.cpp.

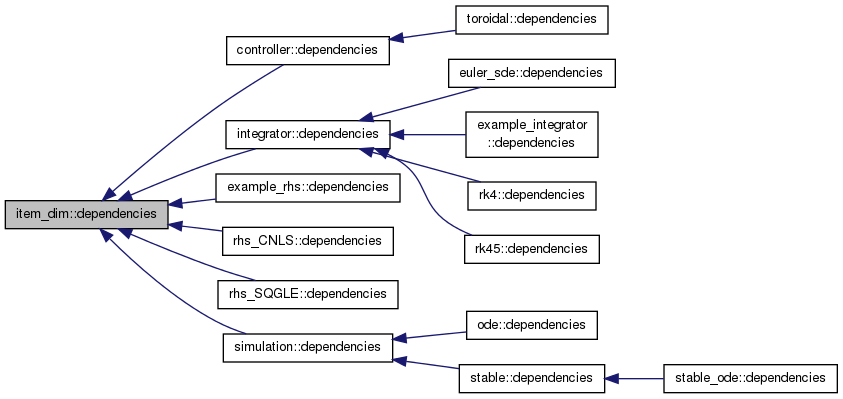

Here is the caller graph for this function:

size_t item_dim::get_dimension ( ) const

inline

Definition at line 39 of file item_dim.h.

void item_dim::postprocess ( input &  dat )

virtual

Reimplemented from item.

Reimplemented in example_rhs, stable_ode, example_integrator_tmpl< T >, jones_optical, example_integrator, c_elegans, stable_spectral_pde_1d_tmpl< T >, stable_spectral_pde_1d_tmpl< comp >, ode_tmpl< T >, simulation, rk45_tmpl< T >, stable_ode_tmpl< T >, stable_ode_tmpl< comp >, rhs_CNLS, euler_sde_tmpl< T >, integrator, n_pulse_score, stable, controller, toroidal, rhs_SQGLE, ode, rk45, rk4_tmpl< T >, euler_sde, rk4, and objective.

Definition at line 25 of file item_dim.cpp.

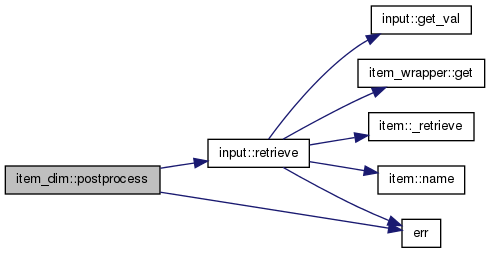

Here is the call graph for this function:

Here is the caller graph for this function:

void item_dim::print_upstream ( )

protected

Definition at line 92 of file item_dim.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void item_dim::update_dim ( size_t  dim_new, size_t  dummy  )

private

Definition at line 84 of file item_dim.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void item_dim::update_dim ( size_t  dim_new )

protected

Definition at line 73 of file item_dim.cpp.

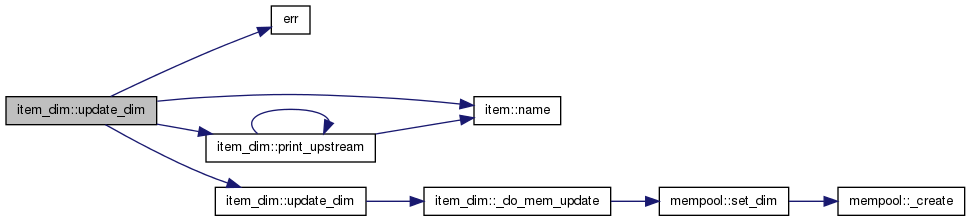

Here is the call graph for this function:

Member Data Documentation

std::set<item_dim*> item_dim::children

protected

Definition at line 32 of file item_dim.h.

size_t item_dim::dimension

protected

Definition at line 34 of file item_dim.h.

mempool item_dim::memp

protected

Definition at line 31 of file item_dim.h.

item_dim* item_dim::parent

protected

Definition at line 33 of file item_dim.h.

---

The documentation for this class was generated from the following files:

• engine/item_dim.h
• engine/item_dim.cpp
