This class defines the integration base class. More...

#include <integrator.h>

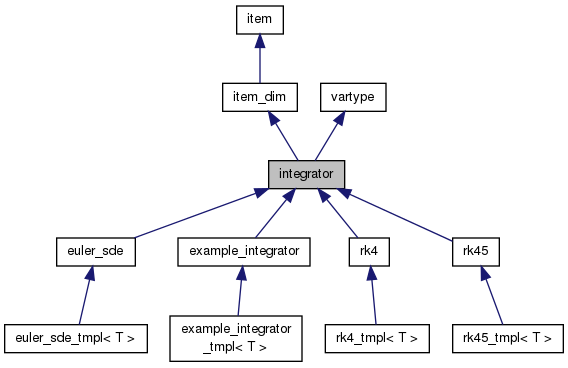

Inheritance diagram for integrator:

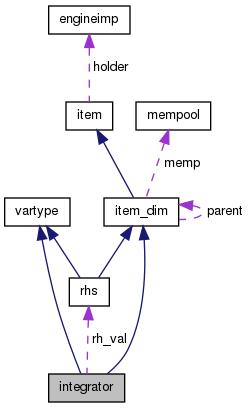

Collaboration diagram for integrator:

Public Member Functions
virtual void	initial_condition (ptr_passer in, size_t len)
void	initial_condition (ptr_passer in)
virtual void	postprocess (input &inval)
	Initiates the integrator from input values.
virtual std::vector< std::string >	dependencies () const =0
virtual std::string	type () const =0
	Returns the name of the integrator.
virtual int	integrate (ptr_passer u, double t0, double tf)=0
	Integrates the function rh.
virtual	~integrator ()
	Blank destructor for integrator.
Public Member Functions inherited from item_dim
size_t	get_dimension () const
Public Member Functions inherited from item
	item ()
virtual	~item ()
virtual void	print () const
	Standard print function.
virtual void	update ()
void	setname (const std::string n)
void	set_write_name (std::string wname)
const std::string &	name () const
const std::string &	write_name () const
Public Member Functions inherited from vartype
virtual const std::type_info &	vtype () const =0
bool	compare (const vartype *in) const
bool	compare (const vartype &in) const
bool	compare (const std::type_info &tinf)
template<typename T >
bool	compare () const
template<typename T >
bool	compare (const T &in) const
std::string	vname () const
virtual const std::type_info &	vtype_internal () const
bool	compare_internal (const vartype *in) const
bool	compare_internal (const vartype &in) const
bool	compare_internal (const std::type_info &tinf)
template<typename T >
bool	compare_internal () const
template<typename T >
bool	compare_internal (const T &in) const
std::string	vname_internal () const
virtual	~vartype ()

Protected Attributes
rhs *	rh_val
Protected Attributes inherited from item_dim
mempool	memp
std::set< item_dim * >	children
item_dim *	parent
size_t	dimension
Protected Attributes inherited from item
std::string	_name
std::string	_write_name
char	has_write_name

Additional Inherited Members
Static Public Member Functions inherited from item
static std::shared_ptr< item >	create (std::string name, engineimp *rval)
Public Attributes inherited from item
engineimp *	holder
Protected Member Functions inherited from item_dim
void	print_upstream ()
virtual void	_do_mem_update (size_t dim_old)
void	add_as_parent (item_dim *p)
void	add_as_parent (std::shared_ptr< item_dim > p)
void	update_dim (size_t dim_new)

Detailed Description

This class defines the integration base class.

This class defines the base integration class, the interface that is used by the engine to integrate differential equations

Definition at line 29 of file integrator.h.

Constructor & Destructor Documentation

virtual integrator::~integrator ( )

inlinevirtual

Blank destructor for integrator.

Definition at line 51 of file integrator.h.

Member Function Documentation

std::vector< std::string > integrator::dependencies ( ) const

pure virtual

This function returns the dependencies of the integrator class

Note: Integrator has no explicit dependencies, returns item_dim::dependencies

Returns: A vector containing the dependencies for integrator

See Also: item_dim::dependencies

Implements item_dim.

Implemented in example_integrator, rk45, euler_sde, and rk4.

Definition at line 28 of file integrator.cpp.

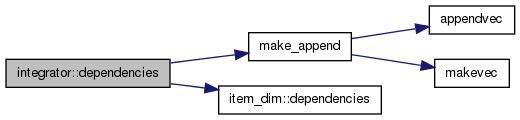

Here is the call graph for this function:

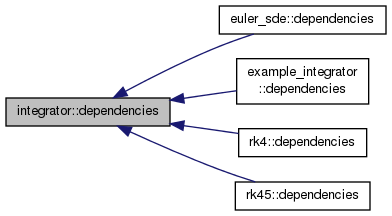

Here is the caller graph for this function:

void integrator::initial_condition	(	ptr_passer	in,
		size_t	len
	)

virtual

Definition at line 45 of file integrator.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void integrator::initial_condition ( ptr_passer in )

inline

Definition at line 34 of file integrator.h.

Here is the call graph for this function:

virtual int integrator::integrate	(	ptr_passer	u,
		double	t0,
		double	tf
	)

pure virtual

Integrates the function rh.

This function integrates the equation du/dt=rh->dxdt(u) from t0 to tf

Parameters

rh	The function being integrated
u	A pointer to the initial condition, also stores the final condition
t0	The initial time
tf	The ending time

Implemented in example_integrator_tmpl< T >, rk45_tmpl< T >, euler_sde_tmpl< T >, rk45, euler_sde, rk4, rk4_tmpl< T >, and example_integrator.

Here is the caller graph for this function:

void integrator::postprocess ( input & dat )

virtual

Initiates the integrator from input values.

This function initializes the internal memory and variables in the initiator class When called, all parameters returned by dependencies are promised to have been processed at the appropriate level of detail
